How to Install a Window AC Unit
As summer temperatures begin to climb, ensuring your home remains a cool sanctuary becomes a top priority. A professional window air conditioner installation is one of the most effective ways to beat the heat without the high costs associated with central air overhauls. Whether you are replacing an old unit or prepping for your first heatwave, doing the job right ensures your home stays chilled and your energy bills stay manageable. Proper installation also helps prevent water leakage issues, making it easier to Remove AC Water efficiently and keep your space clean and damage-free.
This guide will walk you through everything you need to know to install an air conditioner in a window safely and efficiently. From selecting the right tools to avoiding common electrical pitfalls, you’ll gain the confidence to handle this DIY project like a pro. By following these window AC installation steps, you can enjoy a breezy, comfortable living space all season long, and know when to opt for Fast AC Service if you ever need quick professional support.
Tools & Prep Checklist Before Installing Your Window AC
Before you lift a single box, you need to gather the right equipment. Most units from major manufacturers like LG Electronics and Frigidaire come with a basic installation kit, but you will still need a few household tools to ensure a secure fit. Having your supplies ready will prevent mid-project trips to the hardware store.
Essential Tool List
- Measuring tape: To verify window and unit dimensions.
- Screwdrivers: Both Phillips and flat-head varieties.
- Level: To ensure the unit sits properly (with a slight tilt).
- Foam weatherstripping: For sealing gaps around window AC units.
- Drill and bits: For pilot holes to prevent wood splintering.
- Window air conditioner mounting bracket: Recommended for heavy units or high-floor installs.
Beyond tools, inspect the window frame itself. Ensure the wood or vinyl is sturdy and free of rot, as it must support the significant weight of the cooling unit. If you’re installing a heavy-duty model from GE Appliances, consider having a partner nearby to help with the heavy lifting.
Measure Your Window the Right Way for a Perfect AC Fit
Accuracy is everything when it comes to window units. A unit that is too small for the window will leave massive gaps that are hard to seal, while a unit too large simply won't fit. Start by measuring the width of the window opening and the height from the sill to the bottom of the raised sash.
When shopping, look at how brands like Midea Group or GE Appliances label their packaging. They will provide minimum and maximum window widths. Beyond physical fit, you must also consider the best BTU size for room cooling. A unit with 5,000 BTUs is perfect for a small office, while a large living room may require 10,000 to 12,000 BTUs to stay effective.

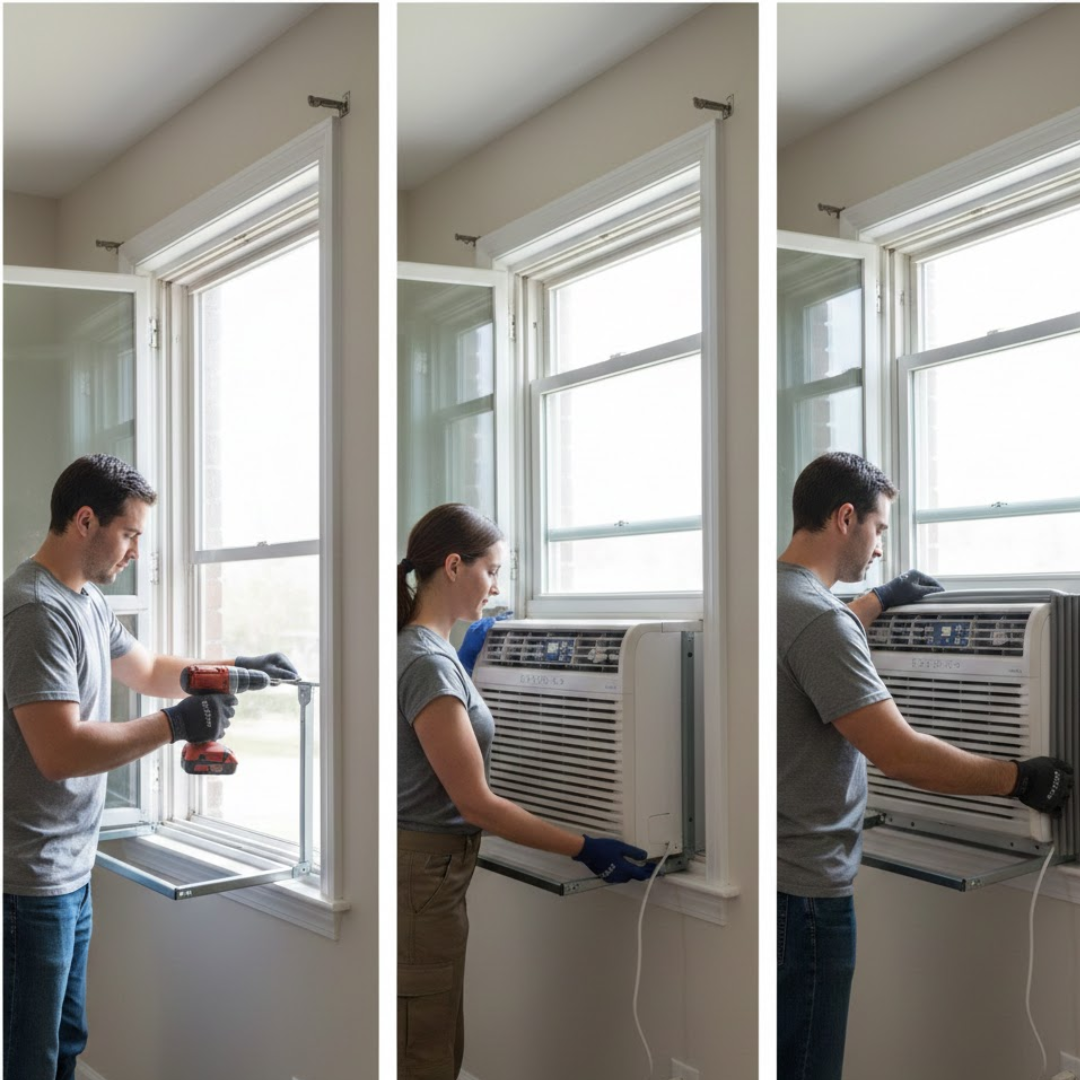

Step-by-Step Guide to Mounting a Window AC Securely
- Prepare the Unit: Attach the accordion-style side panels to the AC cabinet. These panels slide into channels on the side of the unit and are secured with small screws.
- Install the Support: If you are using a window air conditioner mounting bracket, install it now according to the manufacturer’s instructions. This takes the pressure off the window sash.
- Place the AC: Open the window and carefully center the unit on the sill. While holding it firmly, lower the window sash so it sits behind the top mounting rail of the AC.
- Secure the Sash: Use the provided "L" brackets to lock the window sash in place. This prevents someone from opening the window from the outside and causing the unit to fall.
- Check the Angle: Ensure the correct tilt for window AC unit placement. The unit should lean slightly toward the outdoors (about 1/4 inch) so that condensation drains outside rather than onto your floor.
Safe Wiring and Power Tips to Avoid Electrical Issues
Modern air conditioners pull a significant amount of power. Brands like Whirlpool Corporation and Honeywell design their units with specific amperage requirements to ensure safety. Ideally, your AC should be plugged into a dedicated circuit. If you share a circuit with a vacuum or a microwave, you risk tripping the breaker frequently.
Never use a standard household extension cord for an air conditioner. These cords are not rated for the high current required and can become a fire hazard. If the cord cannot reach the outlet, you must have a licensed professional install a closer, grounded outlet. Always ensure your unit is plugged into a three-prong, grounded GFCI outlet to prevent electrical shocks.
Seal, Insulate & Improve Cooling Efficiency Instantly
Once the unit is mounted, you must address the air leaks. If you can see daylight around the edges, you are losing cold air and inviting bugs inside. Most Frigidaire and LG Electronics kits include foam strips. Use these to fill the gap between the upper and lower window sashes.
Tips for Maximum Efficiency
- Seal the side panels: Apply weatherstripping tape where the accordion panels meet the window frame.
- Insulate the panels: Use rigid foam board over the thin plastic side panels to keep heat out.
- Use curtains: Close your blinds during the day to prevent solar heat gain, which allows the AC to work less.
Testing, Maintenance & Common Mistakes to Avoid
Before you declare the job finished, perform a "test run." Plug the unit in and listen for any unusual vibrations or rattling, which could indicate a loose screw or an uneven mount. Check that the airflow is directed toward the center of the room for optimal circulation.
Maintenance Checklist
- Clean the Filter: Do this every 30 days to maintain airflow and indoor air quality.
- Check the Drain: Ensure the outdoor drain hole isn't clogged with debris.
Avoid the "Flat Install": One of the most common mistakes is installing the unit perfectly level. Without that slight outward tilt, water will pool in the base and eventually leak into your drywall.
Frequently Asked Questions
Can I install a window AC unit by myself?
While it is possible for one person to install a small unit, we highly recommend having a second person to help steady the unit while you lower the sash. For larger units, a second pair of hands is a safety necessity.
Do I need special tools to install a window air conditioner?
Most installations only require a screwdriver, a measuring tape, and a level. However, if you are installing into a masonry wall or a very old wooden frame, you may need a drill and specialized anchors.
How long does it take to install a window AC unit?
For a standard double-hung window, a DIY installation typically takes between 30 and 60 minutes. This includes time for measuring, securing the unit, and sealing gaps.
How do I keep my window AC from falling?
The most secure method is to use a mounting bracket that screws into the window sill or exterior wall. Additionally, always screw the top rail of the AC into the window sash to prevent it from shifting.
Can I use an extension cord for my window AC?
Standard extension cords are a fire risk. If you absolutely must use one, it must be a heavy-duty "Air Conditioner Extension Cord" specifically rated for the unit's amperage, but a direct wall connection is always the safest option.
Conclusion
Installing a window unit is a great way to handle localized cooling, but it isn't always the perfect solution for every home. If you find your windows aren't compatible, or if you're tired of the noise and inefficiency of portable units, it might be time for a more permanent solution.
At Air Master Inc., we provide expert HVAC services to keep your home comfortable year-round. From central air maintenance to professional window air conditioner installation and high-efficiency upgrades, our team is here to help. Contact us today to schedule a consultation and ensure your home stays perfectly chilled all summer long.
