What Is a Capacitor in Hvac
When your cooling system fails to kick on during a sweltering afternoon, the culprit is often a small, cylindrical electrical component known as an AC capacitor. While it might look like a simple metal canister, this device is the powerhouse behind your system's startup and continuous operation. Understanding the role of a capacitor, along with basics like an Airflow Pressure Guide, can help you diagnose cooling issues quickly and prevent further damage to your HVAC condenser unit.
In this guide, we will break down the mechanics of the AC capacitor, how to spot a failing unit, and why it is essential for the health of your compressor motor and AC fan motor. We’ll also touch on simple upkeep tips, such as when to Change HVAC Filter, to support overall system efficiency and performance.
How Does an HVAC Capacitor Work?
Think of an HVAC capacitor like a short-term battery for your system. It stores electrical energy and releases it in a quick burst to get the motors running. Your air conditioner needs a lot more energy to start than it does to keep running, and that’s exactly what the AC capacitor does. Concepts like Superheat in HVAC help explain how electrical and thermal balance keeps the compressor motor and fan operating smoothly.
Once everything is up and running, the capacitor keeps supplying a steady flow of energy to maintain smooth operation and consistent torque. This capacity is measured in microfarads (µF), which tells you how much energy the device can hold. If the energy falls outside this range, the motor can struggle, causing increased head pressure in the system and highlighting the importance of proper HVAC Cleaning Steps to avoid long-term damage.
Types of HVAC Capacitors
Most modern systems utilize two primary types of capacitors to manage electrical loads:
- Start Capacitor: This provides the massive boost of energy required to get the compressor or fan moving from a dead stop. It disconnects from the circuit once the motor hits about 75% of its full speed.
- Run Capacitor: This stays active while the system is running. It provides a constant stream of energy to ensure the motor operates efficiently and stays in phase.
- Dual Run Capacitor: This is a common "two-in-one" component found in many residential units. It supports both the compressor motor and the AC fan motor simultaneously, saving space and simplifying the wiring.

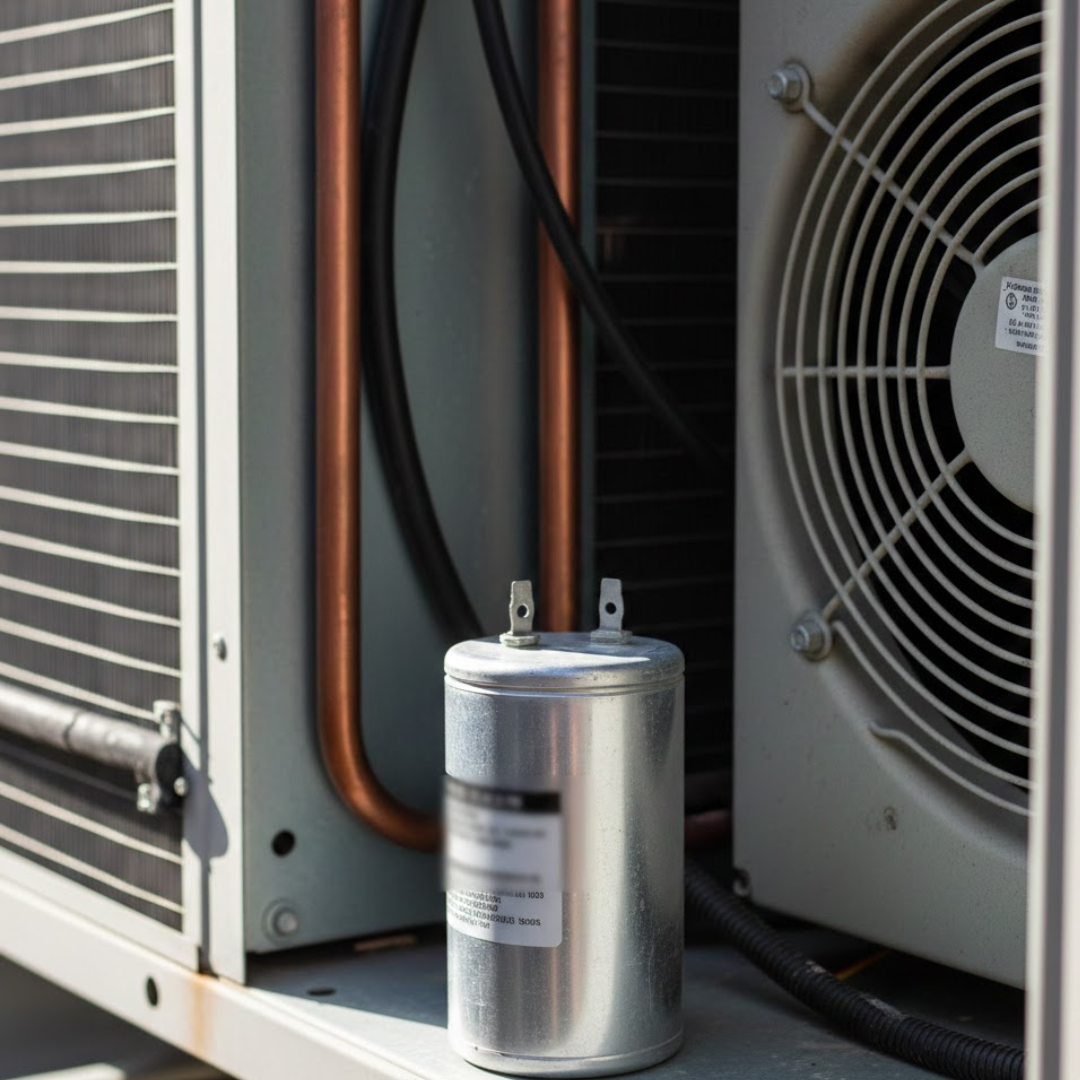

Where Is the Capacitor Located in an HVAC Unit?
To find the HVAC capacitor, you typically need to look inside the outdoor HVAC condenser unit. It is usually housed within a side service panel, tucked away from the elements to protect its electrical terminals. You will see wires connecting it to the contactor and the various motors it supports.
Safety Warning: Never attempt to open your HVAC service panel without turning off the power at the breaker. Capacitors store a dangerous electrical charge even when the power is off.
Signs of a Bad HVAC Capacitor
Identifying a failing AC capacitor early can save you from the high AC capacitor replacement costs associated with a burnt-out compressor. Watch for these red flags:
- Hard Starting: The outdoor unit makes a clicking or humming sound but fails to turn on.
- Delayed Start: The system takes several seconds or minutes to begin cooling after the thermostat triggers.
- The "Smoking Gun": If you look at the component and the top is bulged, "mushroomed," or leaking oil, it is definitely blown.
- High Energy Bills: When a capacitor loses its microfarads (µF) rating efficiency, the motors work harder and consume more electricity.
- Random Shut-offs: The AC turns off unexpectedly before the cooling cycle is complete.
Common Causes of Capacitor Failure
Several factors can lead to the demise of this critical electrical component:
- Heat Exposure: Since capacitors are located in the outdoor unit, extreme summer temperatures can cause the internal chemicals to degrade.
- Power Surges: Lightning strikes or fluctuations in the local power grid can easily "fry" a capacitor.
- Age: Like any battery-like device, they have a limited lifespan. Most are rated for roughly 5 to 20 years of use.
- Incorrect Voltage: Using a capacitor with an improper voltage or microfarad rating for your specific motor will lead to premature failure.
Can You Replace an HVAC Capacitor Yourself?
While the AC capacitor cost for the part itself is relatively low, DIY replacement is generally discouraged for non-professionals. Because an air conditioner capacitor stores high-voltage electricity, it must be manually "discharged" using insulated tools to prevent a lethal shock. Additionally, installing a capacitor with the wrong microfarad (µF) rating can cause permanent damage to your compressor motor. Hiring a certified technician ensures the part is matched correctly to your system's specifications and installed safely.
How to Maintain and Extend the Life of an HVAC Capacitor
While you cannot stop time, you can protect your AC capacitor through consistent maintenance:
- Keep the Unit Clean: Clear away leaves, dirt, and debris from the outdoor unit to ensure proper airflow and reduce heat buildup.
- Annual Inspections: During a routine tune-up, a technician will test the capacitor's output to ensure it is still within its specified range.
- Install a Surge Protector: A whole-house or unit-specific surge protector can shield sensitive electronics from power spikes.
FAQ
Q. How long does an HVAC capacitor typically last?
Most capacitors are designed to last between 10 and 20 years, but factors like extreme heat and frequent power surges can shorten this lifespan significantly.
Q. What happens if a capacitor fails in an HVAC system?
If the capacitor fails, the motors (compressor or fan) will not receive the energy needed to start. This can lead to the motor overheating and eventually burning out, which is a much more expensive repair.
Q. Is a bad capacitor an emergency repair?
Yes. While it might seem minor, continuing to run a system with a failing capacitor puts immense strain on the compressor. Replacing the capacitor immediately prevents the need for a total system replacement.
Q. How much does it cost to replace an HVAC capacitor?
The AC capacitor replacement cost generally ranges from $120 to $300, including parts and professional labor, depending on the unit's complexity and your location.
Keep Your Home Cool and Efficient
A functioning AC capacitor is the unsung hero of your home's comfort. By staying proactive and recognizing the signs of wear, you can avoid the frustration of a breakdown during a heatwave. If you suspect your cooling system is struggling to start or you hear unusual humming from your outdoor unit, it is time to have a professional take a look at your AC capacitor.
